The corpus
One book, read end to end.
Landscapes 2021 is the whole of the Varaschin corpus we hold — one edition, no archive behind it — and it works by drawing rather than listing: dimensioned elevations and plans, printed page after page without a name or an article code beside them. Every figure on this page was computed from that book, and every one of them links back to the spread that prints it.
- 38collectionsas the book’s own index lists them
- 304indexed rows299 carry a printed dimension
- 152rows the book names152 are drawn but unnamed
- 7article codesin 338 spreads
338 spreads, read in two passes and presented as one book in the order it prints. Both passes swept every page for price content and found none, which is why no page of this edition is withheld from the reader — open it and check us.

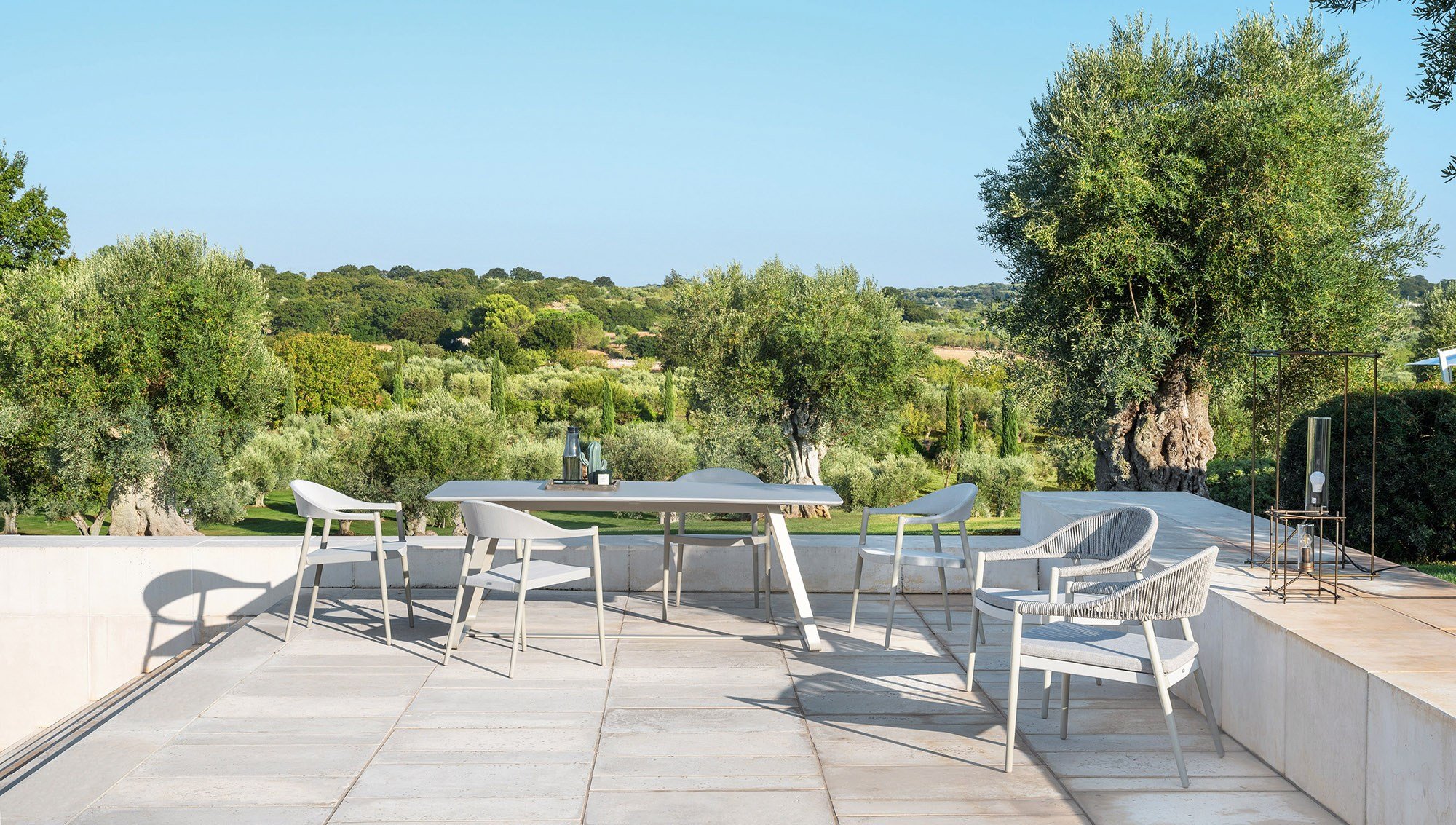

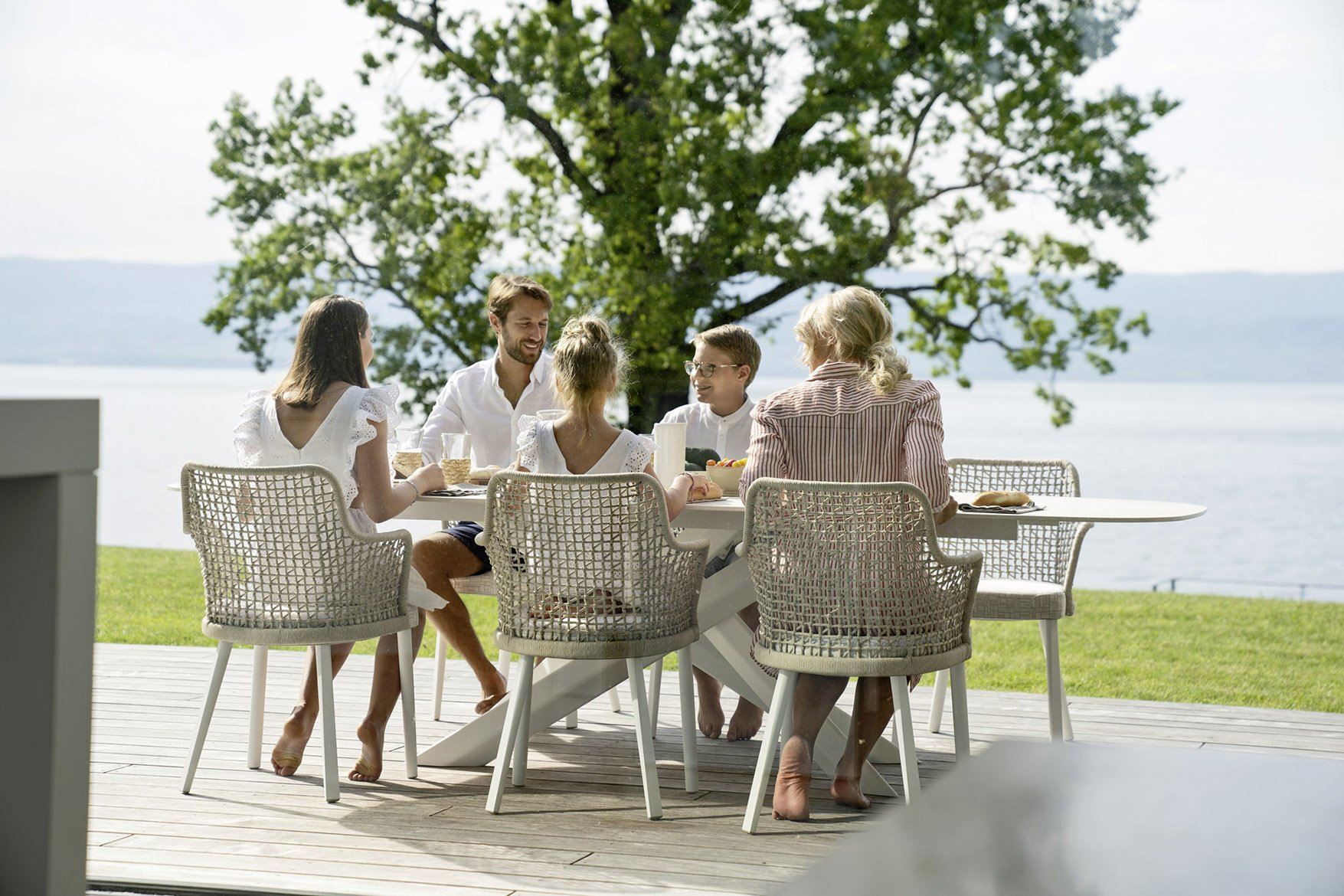

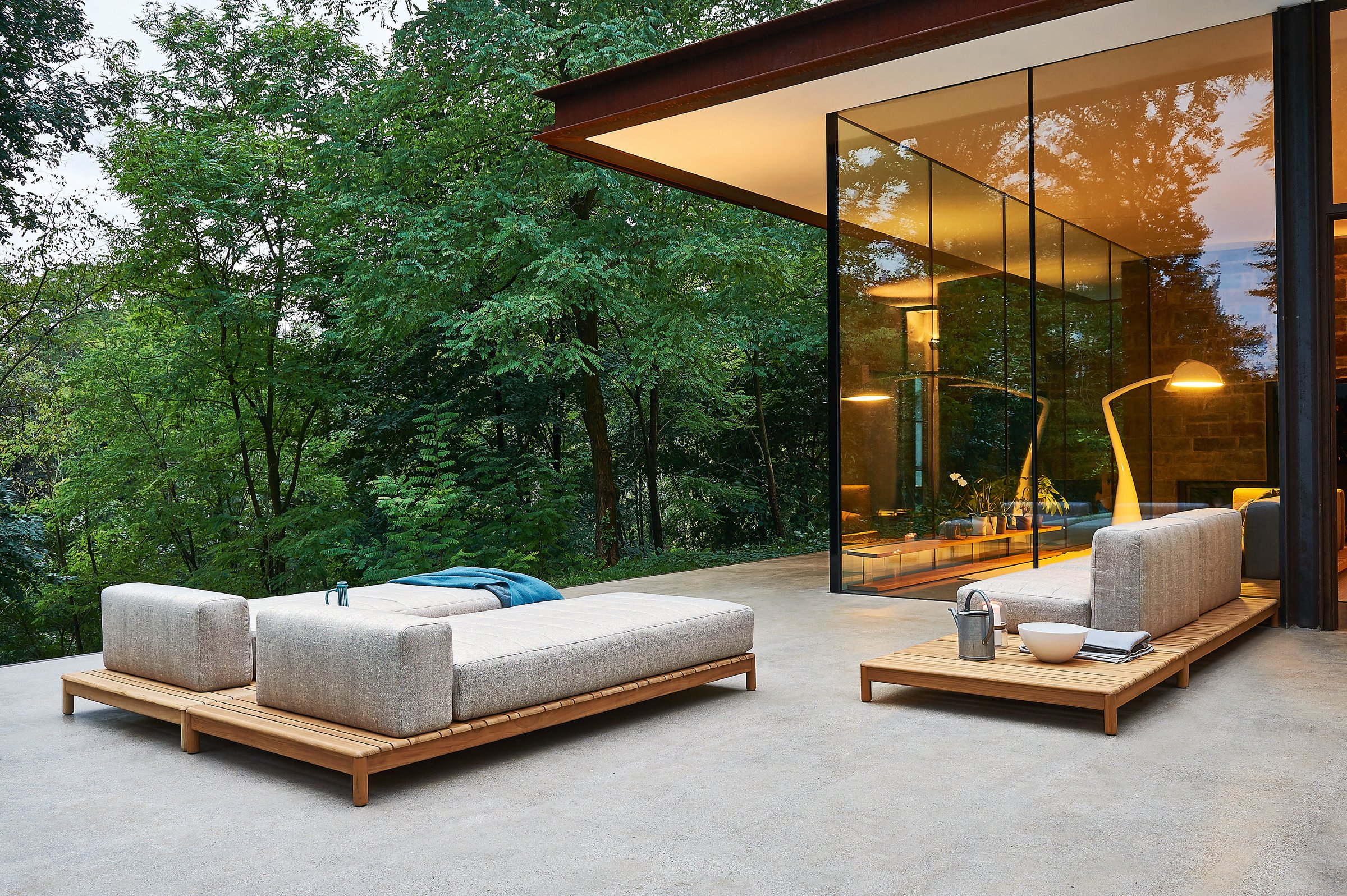

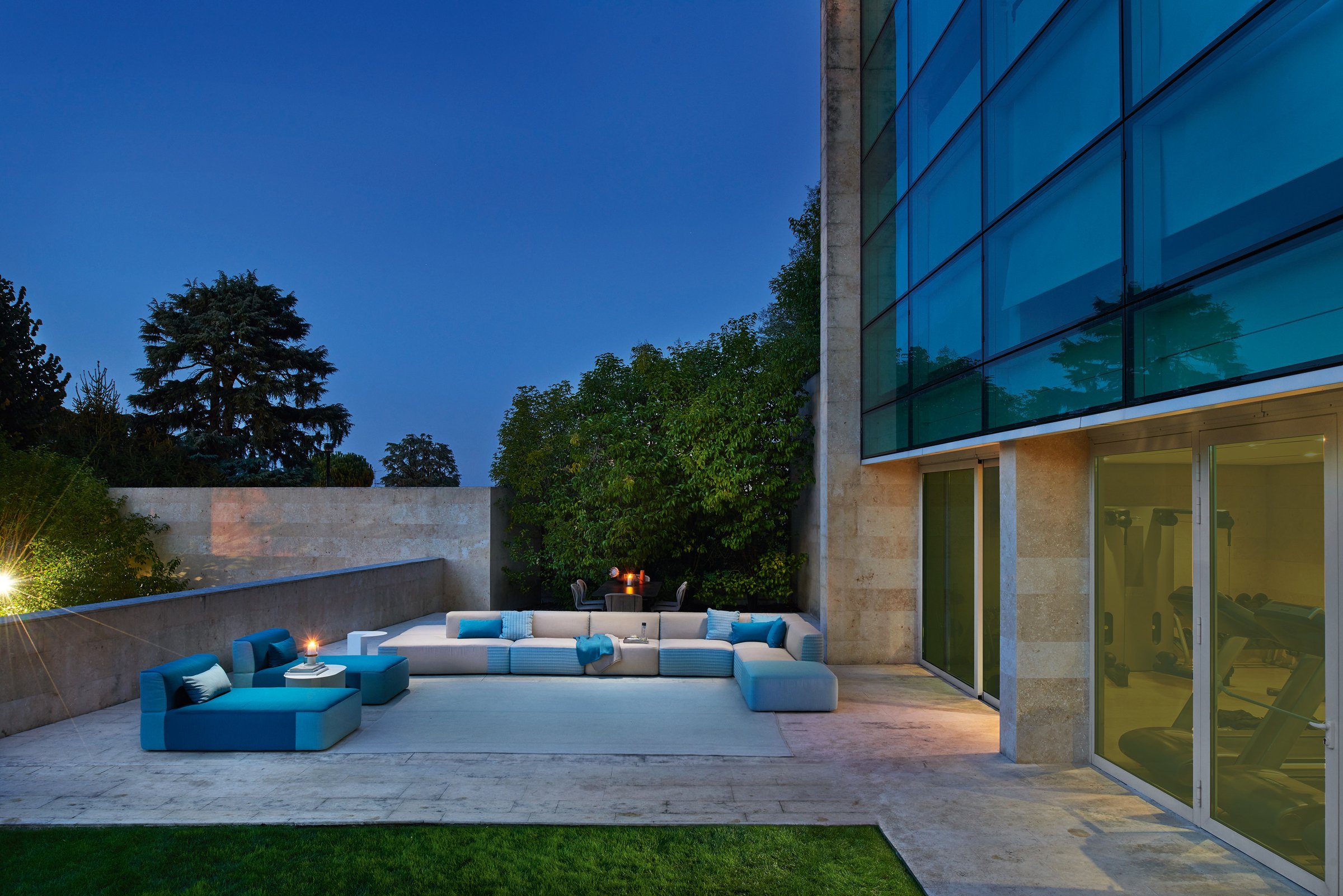

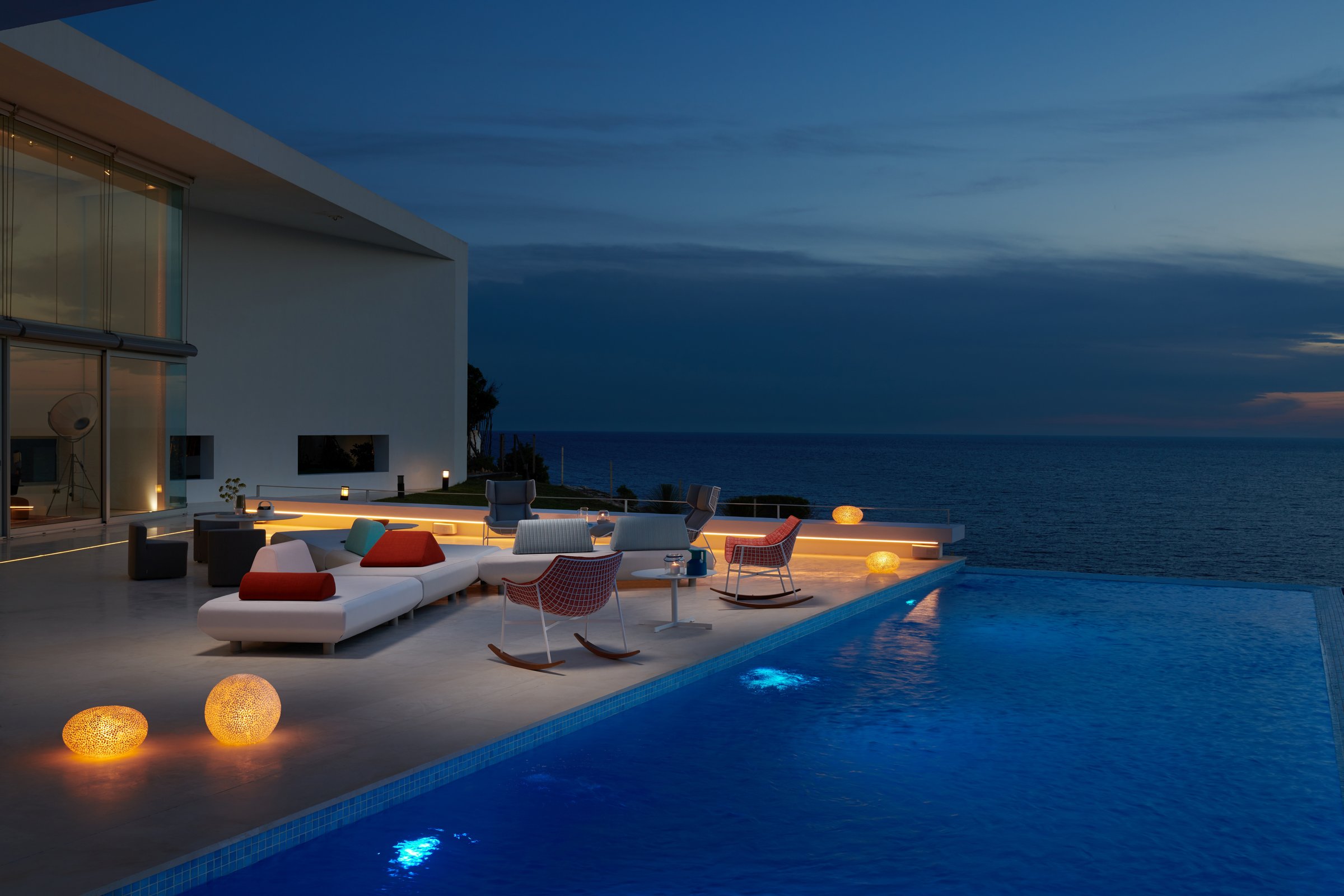

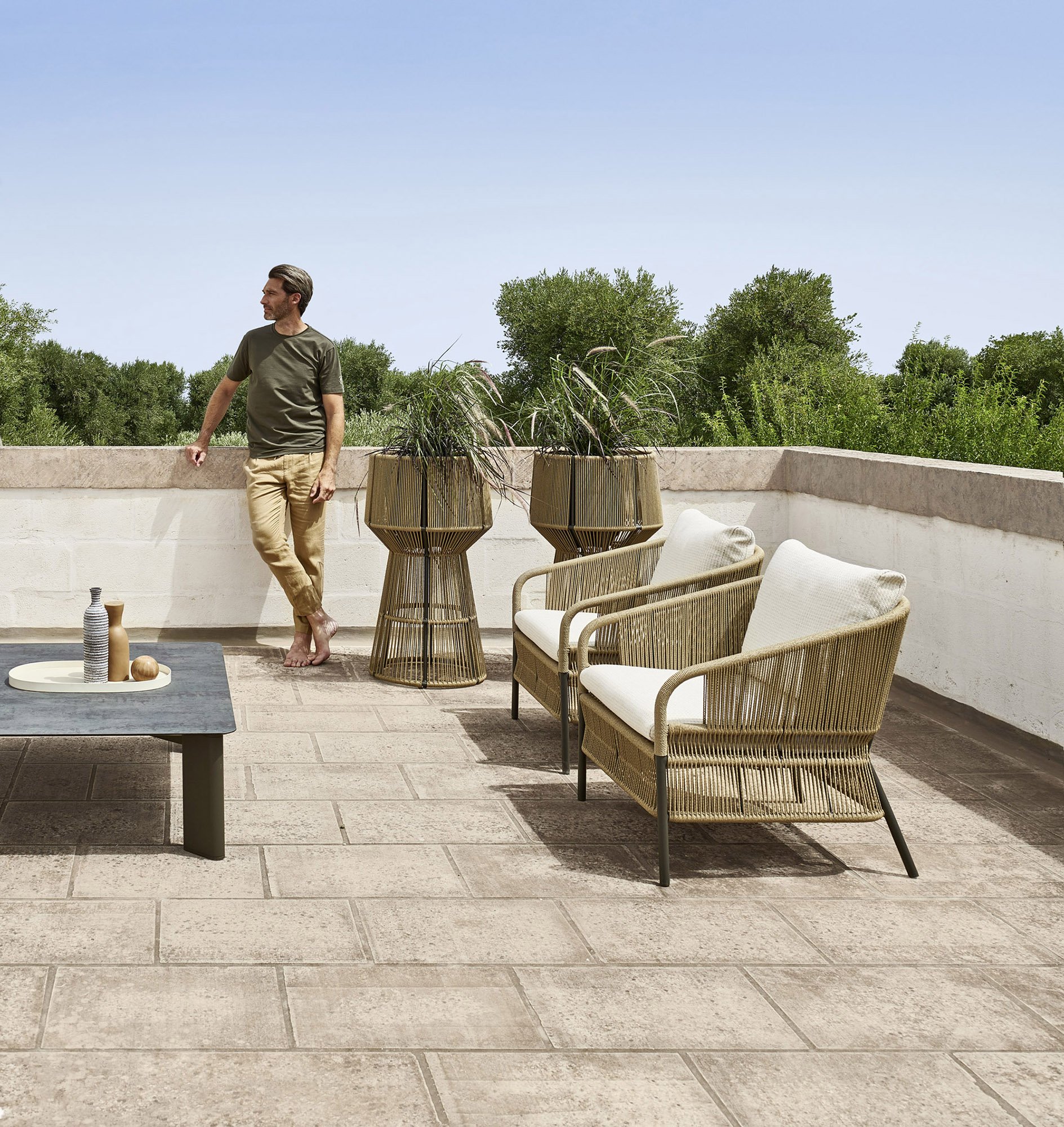

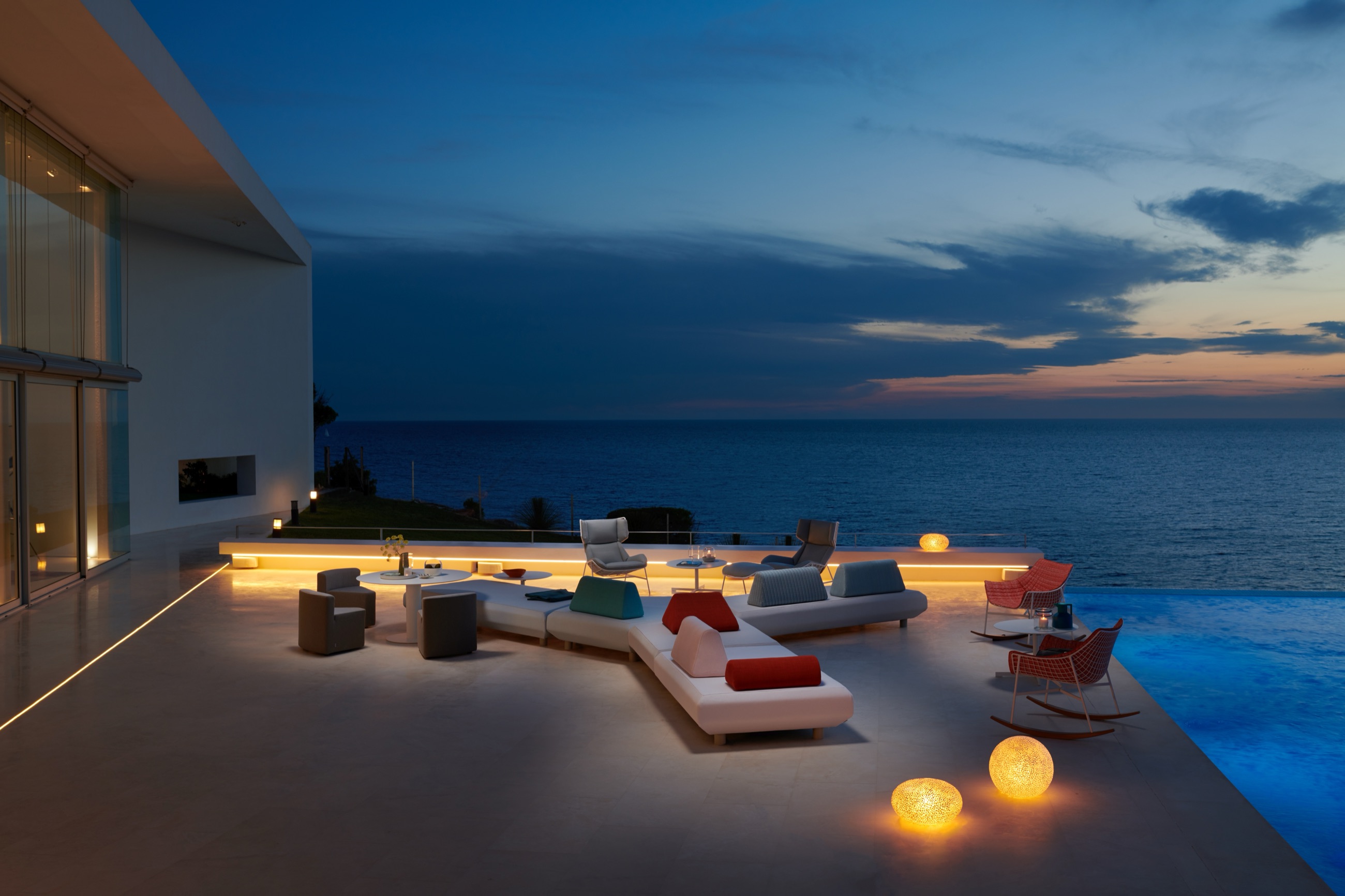

In situ
9 ranges, as the house photographs them.
The catalogue draws; the photography places. These are 9 of the 36 lifestyle frames we hold for this house, one range each, and every one of them opens the spread that range is drawn on.
5 frames run 3:2 and 4run 2:3, at their own ratios — nothing here is stretched to fit a cell. The photography is Varaschin’s own, made between 2015 and 2022, so a frame may show a range in a finish the current edition no longer prints; the spread it links to is the authority, not the picture. No photograph in this house’s corpus names a venue, a city or a country, so none is named here.
The range
38 names, one edition.
The row count is what the drawings yield; the named count is what the book is willing to call something. Across the whole edition those are 152 of 304.
- 15R&D Varaschin84 rows
- 5Calvi Brambilla43 rows
- 4Daniele Lo Scalzo Moscheri53 rows
- 3Monica Armani27 rows
- 2Alessandro Dubini21 rows
- 2Anki Gneib10 rows
- 1Alain GillesLINK
- 1Christophe PilletSUMMER SET
- 1Edoardo GherardiNOSS
- 1Ernesto LechthalerBIG IN&OUT
- 1Giopato & CoombesBABYLON
- 1Philippe BestenheiderMAAT
- 1Pio e Tito TosoPLINTO
12 outside studios are credited by name on their collections; the remaining 15 are credited to R&D Varaschin, the house’s own studio, as the book credits them. 34 of the 38 collections carry a printed description; the rest are drawings and photography only.
152 of the 304 rows are unlabelled technical variants — a dimensioned drawing with no name and no code printed beside it — and 152 of those sit in the first half of the book. They are counted, never named. What each one does carry is its printed callouts and a typology read from the silhouette against the book’s own Italian and English caption words, which is why a row can be a “dining armchair” here without ever being given a product name. One absence worth stating: KOLONAKI runs six table sizes all at the one height and does not appear in the printed low-table index, so it has no Low variant. We do not supply one.
Read the heights twice
Two height conventions, in one book.
A stated table height in this catalogue means one of two different things depending on which collection you are looking at, and the book says which in a footnote on the grid. 16 collection groups carry one of those footnotes. They are set out below in two columns, and the columns must not be read across.
Height includes the top
“Altezza riferita con top” — the figure you read already has the Hpl or ceramic top in it.
The footnotes as printed, Italian first: Altezza riferita con top Hpl e ceramica / Height reported with Hpl and ceramic top · Altezza riferita con top Hpl / Height reported with Hpl top · Altezza riferita con top Hpl e ceramica / Height reported with Hpl and ceramic top · Altezza riferita senza top / Height reported without top · Altezza riferita senza top / Height reported without top. PLINTO is the spread that carries both at once, which is the clearest possible warning that these are not interchangeable — see p.250.
Article codes
7 codes in 338 spreads.
That is the whole of it. Both halves of the book were swept for article codes and the count came back 7 — all of them on one spread, p.159 (printed 314–315). Everywhere else, the book draws.
The other 297 rows in this dossier carry no code, and 152 of the 304 carry no name either. We have not given them one. A drawing indexed here as a “dining armchair” is a drawing the book prints as a dining armchair in its own caption words — not a product we have christened, and not a code we have inferred. Where the book names a piece it is named here, all 152 of them; where it does not, the row is counted and left alone.
Finish & textile
31 finishes, 53 swatch labels.
Colour arrives twice in this book: inside the collections, where a weave or a structure colour is named on its own spread, and again at the back, where a chapter of 10 themed boards sets the whole palette out together. The finishes fall into 12 families as the book heads them, and the boards run from p.327 to p.337 carrying 46 labels between them.
The catalogue names no mill, no grade and no customer’s-own-material policy for any of the 53 labels, so this page names none either. Nor is a colour reproduced here: a swatch label is not a colour, and an approximation printed beside the word would be the only thing on this page that we made up. Every label the book prints is transcribed in the tail, board by board, with the spread it sits on. Open the colour chapter.
The book
Open it and check us.
338 spreads, 38 collections, nothing withheld. Every figure on this page came out of this book and every “p.” above lands on the spread it came from.
Landscapes 2021 is the edition’s shelf title, from the supplier’s own year marking. The colophon records the printing as “Stampa Ottobre 2020” — so the edition is dated 2021 and went to press the October before. The book and every page of it remain © Varaschin.
The record
Everything the book prints, listed.
The bands above state what this edition is; what follows is the whole of it, in the book’s own order and the book’s own words, with the spread that prints each line. Nothing here is a summary of a summary — open any of them and check us.

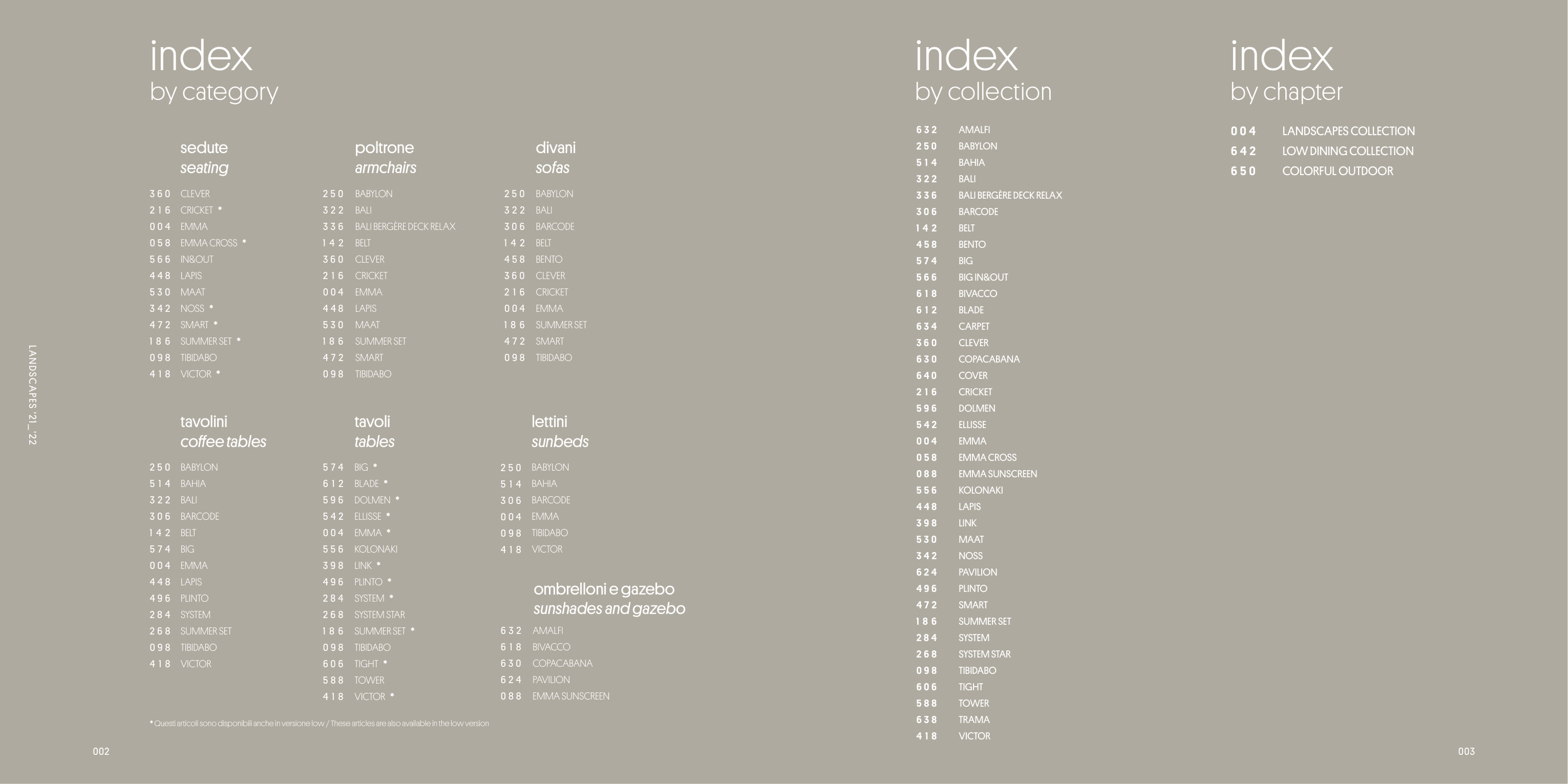

How this book is paginated3 chapters · printed 002–672 across 338 spreads
| Chapter | Starts at printed page | Read |
|---|---|---|
| LANDSCAPES COLLECTION | 004 | p.4 |
| LOW DINING COLLECTION | 642 | p.323 |
| COLORFUL OUTDOOR | 650 | p.327 |
Every render page in this catalogue is a 2-up printed spread. printed_left = 2 x render - 4 and printed_right = 2 x render - 3. Verified at p170 (336-337), p204 (404-405), p308 (612-613), p328 (652-653) and p338 (672, a single page). All 'page' fields in this shard are RENDER page numbers; printed pairs are noted in product notes.
So the reader runs to p.338 while the book runs to printed 672 — the same paper counted two ways. Printed folios begin at 002 on p.3; the cover and the opening manifesto carry no folio at all. Every plate on this page names its printed folios (printed 002–003, and so on), and every “p.” link is a reader page.
Read in two passes. Render pages 1–169: 12 collections, 157 rows. Render pages 170–338: 26 collections, 147 rows. Both passes swept every page for price content and found none, which is why no page of this edition is withheld from the reader.
Every collection, in printed order38 collections · 304 rows · 152 named · 152 unnamed
| Collection | Design | Spreads | Rows | Named | Unnamed | Opens at |
|---|---|---|---|---|---|---|
| EMMA | Monica Armani | 27 | 24 | 0 | 24 | p.4printed 004–005 |
| EMMA CROSS | Monica Armani | 15 | 2 | 0 | 2 | p.31printed 058–059 |
| EMMA SUNSCREEN | Monica Armani | 5 | 1 | 0 | 1 | p.46printed 088–089 |
| TIBIDABO | Calvi Brambilla | 22 | 22 | 0 | 22 | p.51printed 098–099 |
| BELT | Daniele Lo Scalzo Moscheri | 22 | 21 | 0 | 21 | p.73printed 142–143 |
| SUMMER SET | Christophe Pillet | 15 | 19 | 2 | 17 | p.95printed 186–187 |
| CRICKET | Anki Gneib | 17 | 8 | 0 | 8 | p.110printed 216–217 |
| BABYLON | Giopato & Coombes | 9 | 8 | 0 | 8 | p.127printed 250–251 |
| SYSTEM STAR | Daniele Lo Scalzo Moscheri | 8 | 10 | 0 | 10 | p.136printed 268–269 |
| SYSTEM | Daniele Lo Scalzo Moscheri | 11 | 21 | 3 | 18 | p.144printed 284–285 |
| BARCODE | Alessandro Dubini | 8 | 16 | 0 | 16 | p.155printed 306–307 |
| BALI | Alessandro Dubini | 7 | 5 | 0 | 5 | p.163printed 322–323 |
| BALI BERGÈRE DECK RELAXalso set “bali bèrgere deck relax”, “BALI BERGERE DECK RELAX” | Daniele Lo Scalzo Moscheri | 3 | 1 | 1 | — | p.170printed 336–337 |
| NOSS | Edoardo Gherardi | 9 | 2 | 2 | — | p.173printed 342–343 |
| CLEVER | R&D Varaschin | 19 | 7 | 7 | — | p.182printed 360–361 |
| LINKalso set “link allungabile” | Alain Gilles | 10 | 28 | 28 | — | p.201printed 398–399 |
| VICTOR | R&D Varaschin | 15 | 23 | 23 | — | p.211printed 418–419 |
| LAPIS | Calvi Brambilla | 5 | 3 | 3 | — | p.226printed 448–449 |
| BENTO | Calvi Brambilla | 7 | 10 | 10 | — | p.231printed 458–459 |
| SMART | R&D Varaschin | 12 | 6 | 6 | — | p.238printed 472–473 |
| PLINTO | Pio e Tito Toso | 9 | 5 | 5 | — | p.250printed 496–497 |
| BAHIA | Calvi Brambilla | 8 | 2 | 2 | — | p.259printed 514–515 |
| MAAT | Philippe Bestenheider | 6 | 2 | 2 | — | p.267printed 530–531 |
| ELLISSE | R&D Varaschin | 7 | 4 | 4 | — | p.273printed 542–543 |
| KOLONAKI | Calvi Brambilla | 5 | 6 | 6 | — | p.280printed 556–557 |
| BIG IN&OUT | Ernesto Lechthaler | 4 | 2 | 2 | — | p.285printed 566–567 |
| BIG | R&D Varaschin | 7 | 16 | 16 | — | p.289printed 574–575 |
| TOWER | Anki Gneib | 4 | 2 | 2 | — | p.296printed 588–589 |
| DOLMEN | R&D Varaschin | 5 | 10 | 10 | — | p.300printed 596–597 |
| TIGHT | R&D Varaschin | 3 | 3 | 3 | — | p.305printed 606–607 |
| BLADE | R&D Varaschin | 3 | 2 | 2 | — | p.308printed 612–613 |
| BIVACCO | R&D Varaschin | 3 | 1 | 1 | — | p.311printed 618–619 |
| PAVILIONalso set “PAVILLION” | R&D Varaschin | 3 | 1 | 1 | — | p.314printed 624–625 |
| COPACABANA | R&D Varaschin | 1 | 2 | 2 | — | p.317printed 630–631 |
| AMALFI | R&D Varaschin | 1 | 1 | 1 | — | p.318printed 632–633 |
| CARPET | R&D Varaschin | 2 | 6 | 6 | — | p.319printed 634–635 |
| TRAMA | R&D Varaschin | 1 | 1 | 1 | — | p.321printed 638–639 |
| COVER | R&D Varaschin | 1 | 1 | 1 | — | p.322printed 640–641 |
Every article code printed in the edition7 codes · 297 rows carry none
| Code | Collection | Typology, as read from the spread | Printed callouts |
|---|---|---|---|
| 22813S | BARCODE | divano componibile / modular sofa compositionRender p159 (printed 314-315), headed "modularita / MULTIPLE SOLUTIONS", is the ONLY page in render pages 1-169 that prints Varaschin article codes. Seven sofa compositions are shown, each with a photograph, its code, and a dimensioned elevation + plan. This composition: 180 seat span with a 90 element each side; elevation heights 52 (arm/low back) and 67 (back); plan 20 + 70 + 90. Overall width not printed as a single figure, so dims_cm.w left null. | 90 180 90 52 67 20 70 90 |
| 22816S | BARCODE | divano componibile / modular sofa compositionSame 90/180/90 footprint as 22813S but with BOTH elevation heights at 67 (full back on both ends rather than one low arm). | 90 180 90 67 67 20 70 90 |
| 22843S | BARCODE | divano componibile / modular sofa compositionLarger 220 composition; plan 40 + 90 + 90. | 110 220 20 90 52 67 40 90 90 |
| 22841S | BARCODE | divano componibile / modular sofa composition220 composition on a teak platform; plan 20 + 20 + 90 + 90. | 110 220 20 90 52 67 20 20 90 90 |
| 22842S | BARCODE | divano componibile / modular sofa compositionAs 22841S but with both elevation heights at 67. | 110 220 20 90 67 67 20 20 90 90 |
| 22832S | BARCODE | divano componibile con pedana / modular sofa composition with deckComposition photographed with an extended open teak deck to one side; plan 110 + 20 + 90. | 110 220 20 90 52 67 110 20 90 |
| 22834S | BARCODE | divano componibile con pedana / modular sofa composition with deckComposition with open teak deck; plan 90 + 40 + 90. | 110 220 20 90 52 67 90 40 90 |

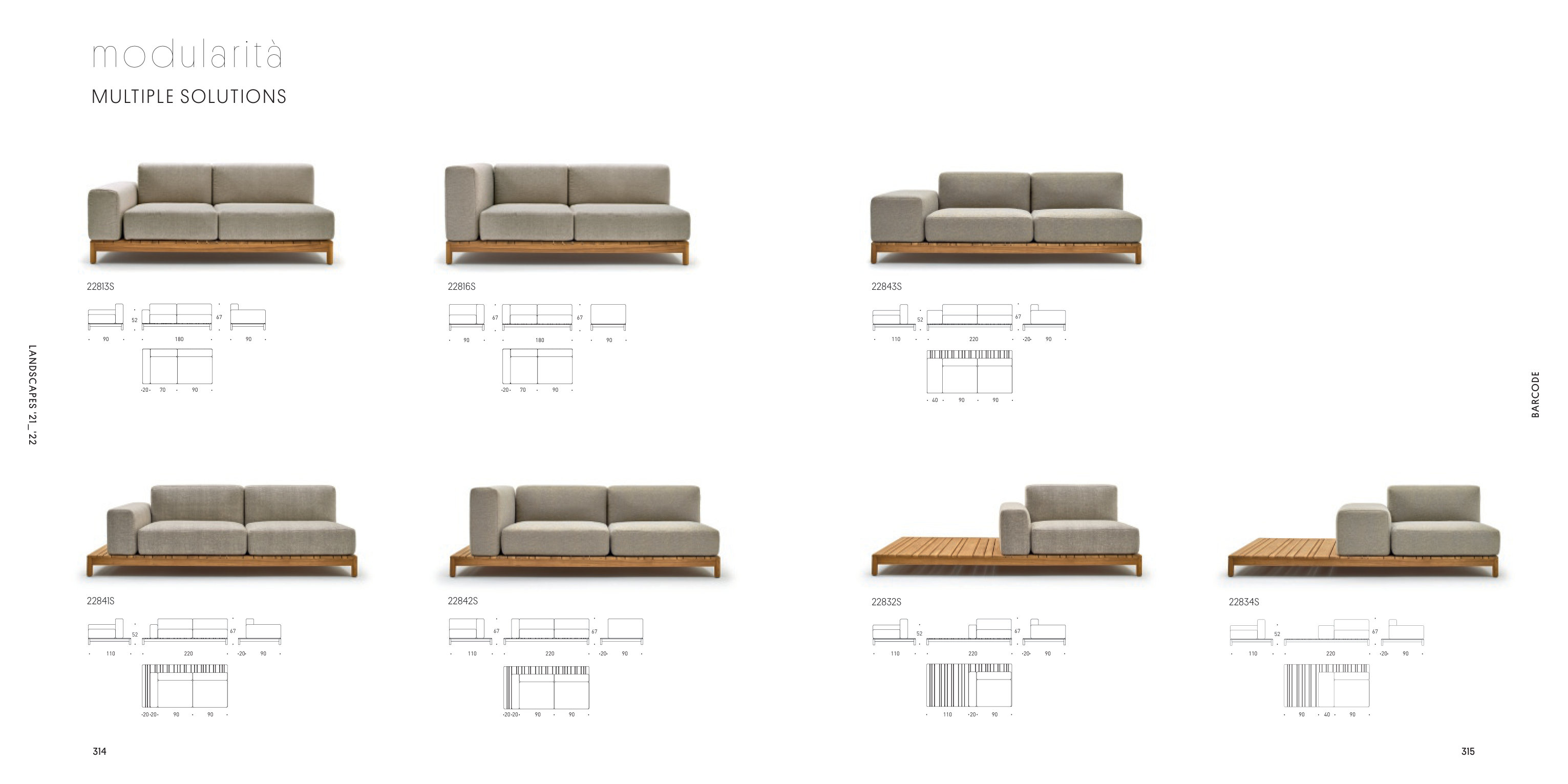

- modularita / MULTIPLE SOLUTIONS (BARCODE)
- BARCODE's equivalent spread, render p159 (printed 314-315), DOES print article codes: seven compositions each with a photograph, a code (22813S, 22816S, 22843S, 22841S, 22842S, 22832S, 22834S), a dimensioned elevation and a dimensioned plan. This is the only source of Varaschin article codes anywhere in render pages 1-169. p.159
The height footnotes, and the low-dining indices3 printed indices · 25 entries
- Altezza riferita con top Hpl e ceramica / Height reported with Hpl and ceramic top
- Footnote governing how table heights are stated. Printed on the EMMA opener (render p004), TIBIDABO opener (p051), SYSTEM STAR opener (p136) and SYSTEM opener (p144). Any table height in those collections presumes an Hpl or ceramic top is fitted. p.4
- Altezza riferita senza top / Height reported without top
- The OPPOSITE convention, and a trap for anyone merging the two: on the SUMMER SET opener (render p095) the table drawings dimension the BASE ONLY and the stated height EXCLUDES the top. SUMMER SET table heights are therefore not directly comparable with EMMA/TIBIDABO/SYSTEM/SYSTEM STAR table heights. p.95
- Varaschin dimension-icon grammar — seating
- Seating dimensions are printed as unlabelled callouts around two pictograms. FRONT-VIEW icon: number BELOW = width, number at the RIGHT = seat height. SIDE-VIEW icon: number BELOW = depth, number at the TOP = total height, number at the RIGHT = arm height. Verified three ways: (a) internal consistency — NOSS standard vs NOSS Low and SMART poltroncina vs poltroncina low each differ by exactly -5 cm on seat/total/arm with width and depth unchanged; (b) fully legible large-format grids; (c) exact multiset checksums, where a proposed per-group decomposition is accepted only if its token multiset exactly reconstructs the page's text-layer multiset. p.170
- Varaschin dimension-icon grammar — tables and bases
- Table dimensions are printed around a plan + elevation pair. TOP-LEFT of the plan = length, TOP-RIGHT of the plan = depth, number to the RIGHT of the elevation = height. A BRACKETED value is the extended length of an extendable table, and the leaf size is marked on the dashed plan extension. Verified on the fully legible large-format grids LINK (p201), KOLONAKI (p280), BIG (p289) and DOLMEN (p300), then checksum-confirmed on every other table page. p.201
- Height convention — with Hpl top
- Printed footnote 'Altezza riferita con top Hpl / Height reported with Hpl top'. Applies to LINK (p201, p204), VICTOR (p211), ELLISSE (p273), KOLONAKI (p280) and DOLMEN (p300): the printed height INCLUDES the top. ELLISSE cross-checks this — the prose says H74 + top / Low H66 + top while the icons print 75 / 67. p.201
- Height convention — without top
- Printed footnote 'Altezza riferita senza top / Height reported without top'. Applies to the PLINTO base group (p250), BIG (p289), TOWER (p296), TIGHT (p305) and BLADE (p308): the printed height EXCLUDES the top. Mixing the two conventions across collections is the single biggest comparison trap in this catalogue. p.250
- Height convention — with Hpl and ceramic top
- Printed footnote 'Altezza riferita con top Hpl e ceramica / Height reported with Hpl and ceramic top', carried by the PLINTO coffee-table group only. p250 therefore uses TWO different height conventions on one spread — bases without top, coffee tables with top. p.250
The book gives the reduced-height programme a chapter of its own and closes it with 3 printed indices — 25 entries across low tables and low armchairs. Those lists are the book’s, in the book’s order, and they are the only place the word LOW is attached to a named collection rather than to a drawing.
Low tables · h67
- ELLISSE LOW
- VICTOR LOW
- BIG LOW
- LINK LOW
- SUMMER SET LOW
- PLINTO LOW
- TIGHT LOW
- BLADE LOW
- SYSTEM LOW
- EMMA LOW
- DOLMEN LOW
- versione low / low version
- A cross-cutting product programme. The index on render p003 marks selected collections with an asterisk and the note "Questi articoli sono disponibili anche in versione low / These articles are also available in the low version". Within part 1 the starred collections are CRICKET, EMMA CROSS, SUMMER SET and (in the tables category) BIG, BLADE, DOLMEN, ELLISSE, EMMA, LINK, PLINTO, SYSTEM, TIGHT, VICTOR. The dedicated LOW DINING COLLECTION chapter opens at printed 642 (render p321+, part 2). Low variants are also flagged in-line: render p102 carries a "low DINING" badge over the SUMMER SET low seats. p.3
- LOW DINING COLLECTION — concept
- 'N O T O N LY P R O D U C T, B U T C O N C E P T.' — 'Pochi centimetri fanno la differenza nello stare a tavola. L'altezza ridotta dei tavoli abbinati alle sedute lounge e poltroncine low, sviluppa una nuova modalità di relazione, unicamente outdoor. / Few centimeters make the difference when dining. The reduced table height combined with lounge seats and low armchairs, develops a new relationship mode uniquely outdoor.' p.323
- LOW DINING — low tables h67 index
- Printed index of the h67 low tables: ELLISSE LOW, VICTOR LOW, BIG LOW, LINK LOW, SUMMER SET LOW, PLINTO LOW, TIGHT LOW, BLADE LOW, SYSTEM LOW, EMMA LOW, DOLMEN LOW. (SUMMER SET, SYSTEM and EMMA are documented in part 1 of this catalogue, i.e. render pages before 170.) p.324
- LOW DINING — low armchairs h40 index
- Printed index of the h40 low armchairs: NOSS LOW, SMART LOW, SUMMER SET LOW, EMMA CROSS LOW, CRICKET LOW, VICTOR LOW. p.325
- LOW DINING — lounge armchairs h40 index
- Printed index of the h40 lounge armchairs: SUMMER SET, CRICKET, CLEVER, SMART, LAPIS, MAAT, EMMA, TIBIDABO. p.326
The finish system, by printed family31 entries · 12 families
| Family, as printed | Entries | Read |
|---|---|---|
| due tono su tono, un rosso che ricorda le terre, un verde ispirato alle foreste e un azzurro cielo polveroso / 2 tone on tone, a red that reminds me of a clay soil, green of the forest and a light dusty sky bluecinque colori dell'intreccio EMMA CROSS / EMMA CROSS weave, 5 colours | 1 | p.45 |
| i due toni degli intrecci di EMMA / the two standard tonescorda intreccio EMMA, due toni / EMMA cords, two standard tones | 1 | p.45 |
| colori della struttura, abbinati ai rivestimenti Batyline e Vartex / structure colours, matched to the Batyline and Vartex covers6 colori della struttura EMMA SUNSCREEN / 6 colours of the EMMA SUNSCREEN structure | 1 | p.46 |
| bianco e nero / black and whitecolorazioni bianco e nero TIBIDABO / TIBIDABO black and white colorings | 1 | p.72 |
| struttura in alluminio verniciato a polveri / powder-coated aluminium structurestruttura bianco / WHITE STRUCTURE · struttura grigio seta / SILK GREY STRUCTURE · struttura grigio / GREY STRUCTURE | 3 | p.200 |
| struttura gazebo / gazebo framealluminio verniciato bianco / white powder-coated aluminium | 1 | p.311 |
| CARPET colourwayGRIGIO / GREY · TAUPE / TAUPE · BRONZO / BRONZE | 3 | p.320 |
| TRAMA colourwayBEIGE/BIANCO / BEIGE-WHITE · GRIGIO / GREY · TORTORA / TAUPE · BRONZO/TABACCO / BRONZE-TOBACCO · OTTANIO/BRONZO / TEAL-BRONZE | 5 | p.321 |
| ALUMINIUM / ALLUMINIOALUMINIUM / ALLUMINIO moka / dark brown · ALUMINIUM / ALLUMINIO bronze / bronzo · ALUMINIUM / ALLUMINIO grey / grigio · ALUMINIUM / ALLUMINIO silk grey / grigio seta · ALUMINIUM / ALLUMINIO Black / nero · ALUMINIUM / ALLUMINIO white / bianco | 6 | p.328 |
| CERAMIC / CERAMICA (top)CERAMIC / CERAMICA grey porphyry / porfido grigio · CERAMIC / CERAMICA lime white / bianco calce · CERAMIC / CERAMICA dark stone / grigio scuro | 3 | p.328 |
| HPL (top)HPL corten · HPL bedonia · HPL cement / cemento · HPL silk grey / grigio seta | 4 | p.329 |
| legno / woodIROKO · TEAK | 2 | p.329 |
The colour chapter, board by board46 swatch labels · 10 boards
Each board prints its labels as a family name over a code and a colour word. What follows is those labels, as text — no colour is reproduced, because a swatch label is not a colour.
- p.328ABACO C478 - bronzo · BATYLINE grey · GEMMA D172 - corallo · PIPER B093 - liquirizia · STRIPES B553 - bordeaux
- p.329CANVAS B507 - oliva · LOPEZ D131 - pistacchio · STRIPES B545 - peltro · VEGETAL D148 - pietra
- p.330CANVAS B508 - citron · CANVAS B510 - orange · MARINE C100 - beige · PANAMA B139 - mais · VEGETAL D145 - zinco
- p.331LOPEZ D129 - palude · OSCAR B20 - bianco · PIPER B091 - polvere · STRIPES B544 - argento
- p.332CANVAS B504 - acquerello · LOPEZ D128 - ghiaccio · PIPER B090 - marmo · TEXTURE perla · VEGETAL D143 - artic
- p.333ABACO C482 - titanio · JAZZ E482 - seta · PANAMA B1383 - righe carbone · TEXTURE gabardina
- p.334ABACO C480 - oceano · JUNGLE B127 - celeste · Panama B1394 - grigio chiaro · POP E458 - turchese · VAR#TEX acquerello · VAR#TEX white / bianco · VELLUTO D182 - turchese
- p.335MARINE C102 - lime · PANAMA B135 - green · TELINA grey brown · VEGETAL D146 - oliva · VOGUE E102 - monstera
- p.336ABACO C481 - blu · ABACO C485 - nero · MARINE C110 - fumo · VOGUE E104 - piquet
- p.337LOPEZ D120 - bianco · POP E455 - bianco · STRIPES B541 - bianco

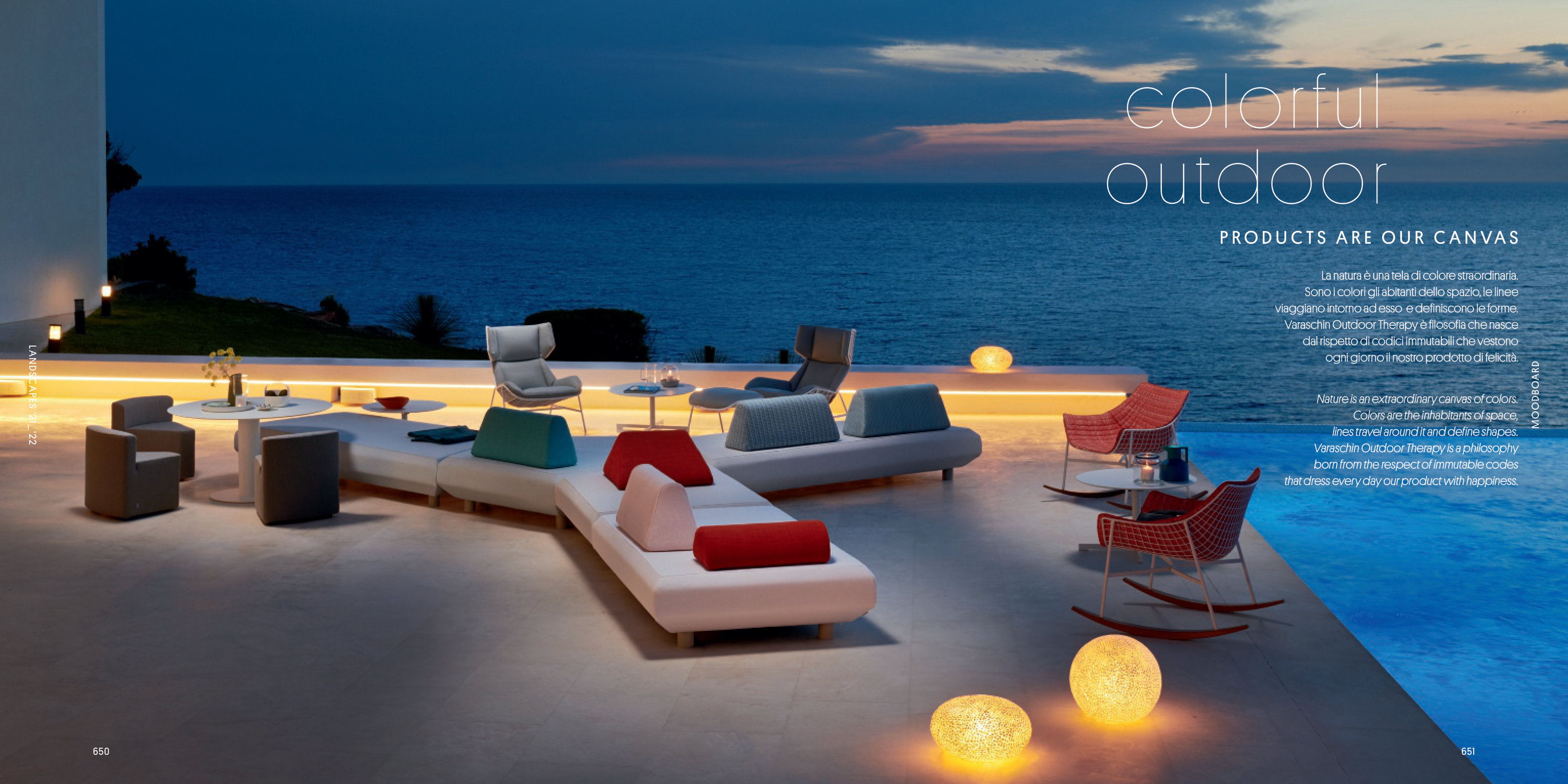

- MOODBOARD section — 'colorful outdoor'
- 'P R O D U C T S A R E O U R C A N VA S'. Eleven-page moodboard section (p327 intro + ten themed boards p328-337: autumn vibes, deep forest, peaceful desert, high mountain, nordic lakeshore, wild waterfall, endless ocean, tropical jungle, dark seaside, artic cliff — spellings as printed). Each board prints swatch labels in the form '<FAMILY NAME>' newline '<CODE> - <colour>', which is the source for this shard's fabric_programme and for the ALUMINIUM / HPL / CERAMIC / wood entries in finish_system. p.327
Cushions and padding6 programmes, each on the spread that uses it
- gomme Dryfeel da esterno / outdoor Dryfeel foam
- Varaschin's outdoor cushion/seat padding, named on the openers of EMMA (render p004), EMMA CROSS (p031), TIBIDABO (p051), BELT (p073) and BALI (p163). Printed formulations: "Tappezzeria della seduta in tessuto e imbottitura con gomme Dryfeel da esterno" / "Seat upholstered with fabric and outdoor Dryfeel foam"; "Cuscini con imbottitura gomme Dryfeel da esterno" / "Cushions in Dryfeel outdoor foam". p.4
- gomma da interno / indoor foam (BELT indoor version)
- BELT is offered in an outdoor and an indoor build. Printed: "Versione indoor: struttura portante in legno massello di abete e imbottitura in gomma da interno" / "Indoor version: fir wood and indoor foam". The outdoor version uses solid Okoume wood plus outdoor Dryfeel foam. p.73
- gomme Dryfeel da esterno / Dryfeel outdoor foam
- Standard outdoor padding across the upholstered collections in this range: BALI BERGÈRE DECK RELAX (p170), NOSS optional cushion (p173), LAPIS upholstered shell (p226), BENTO outdoor version (p231), MAAT cushions (p267). Printed as 'gomme Dryfeel da esterno' / 'Dryfeel outdoor foam'. p.170
- Cuscino opzionale NOSS / NOSS optional cushion
- 'Cuscino opzionale con imbottitura in gomma Dryfeel da esterno / Optional cushion with Dryfeel foam padding for outdoor use' — the NOSS armchair ships without a cushion by default. p.173
- gomma da interno / standard indoor foam
- BENTO indoor version padding, paired with a fir-wood (abete) frame, as against the okumé + Dryfeel outdoor version. Printed on p231. p.231
- Materasso di seduta sfoderabile BIVACCO / BIVACCO removable-cover seat mattress
- 'Materasso di seduta sfoderabile con 2 schienali indipendenti e reclinabili / Seat cushion with removable covers and 2 independent and reclining backrests'. Seat height printed as 45 cm. p.311
Care and technical copy, transcribed with its page25 notes in the edition · 9 of them here
Where the catalogue hedges, the hedge ships; where it makes no claim, none is made here. The technical block is published once, in pieces: the height footnotes and the low-dining indices sit in the disclosure above, the BARCODE note with the codes, the moodboard note with the colour chapter, the page-mapping note with the pagination, the colophon at the close, and the remainder below.
- MODELLO REGISTRATO / REGISTERED MODEL
- Registered-design notice printed at the foot of the collection description on the openers of EMMA (render p004), EMMA CROSS (p031), EMMA SUNSCREEN (p046), TIBIDABO (p051), SUMMER SET (p095), CRICKET (p110), BABYLON (p127), SYSTEM STAR (p136), SYSTEM (p144), BARCODE (p155) and BALI (p163). NOT printed on the BELT opener (render p073) — BELT is the one collection in part 1 whose opener carries no registered-model line. p.4
- teak di piantagione certificata / certified plantation teak
- Timber sourcing claim printed on the SYSTEM opener (render p144, for the optional teak bench seat), the BARCODE opener (p155, whole collection) and the BALI opener (p163, whole collection). Printed wording: "teak di piantagione certificata" / "plantation certified solid teak" / "solid teak wood from certified plantation". No certification scheme or certificate number is printed. p.155
- soluzioni d'arredo / MULTIPLE SOLUTIONS (BELT)
- BELT carries two configuration-reference spreads, render p089 (printed 174-175) and render p093 (printed 182-183). Each prints eight plan-view sofa layouts labelled /01 to /08. NO article codes and NO dimensions are printed on either spread — they are layout inspiration only, not a parts list. p.89
- MODELLO REGISTRATO / REGISTERED MODEL
- Registration statement printed on the technical spreads of BALI BERGÈRE DECK RELAX, NOSS, CLEVER, LINK, LAPIS, BENTO, PLINTO, BAHIA, MAAT and KOLONAKI. SMART instead prints 'MATERIALE REGISTRATO / REGISTERED MATERIAL' (referring to VAR#TEX, not the model). p.170
- LINK extendable mechanism
- Dedicated spread 'link allungabile / EXTENDABLE TABLE' (printed 404-405) showing the 200x100 H73 in three states: closed 200, one 55 cm leaf to 255, two 55 cm leaves to 310. The photo captions are printed '200 mm / 255 mm / 310 mm' — evidently centimetres given the icons and the rest of the catalogue; recorded as printed, not corrected. p.204
- BENTO composition rules
- 'soluzioni d'arredo / MULTIPLE SOLUTIONS' (printed 470-471): nine worked composition diagrams labelled /01 to /09 built from the seven BENTO modules. The prose states the customer may re-arrange purchased modules repeatedly and add further modules later, 'rispettando semplicemente le regole di composizione / following the possible options available'. Caption: 'DIVANO BENTO - TAVOLINO BELT - PANCA SYSTEM'. p.237
- CARPET material specification
- 'Tappeti per esterno realizzati con fibre sintetiche, non-assorbenti e altamente resistenti all'azione degli agenti atmosferici. 100% Polipropilene / Outdoor carpet in synthetic fibers, non absorbent and highly resistant to bad weather. 100% Polypropelene' (spelling as printed). p.319
- TRAMA material specification
- 'Coperta per esterno con lavorazione maglia rasata. Composizione 100% Olyna. / Outdoor knitted blanket made of 100% Olyna.' Size 170x120 cm, five printed colourways. p.321
- COVER — protective covers programme
- Custom-made covers cut to the ordered sofa composition and produced at the same time as the sofa. 100% polyester, 180 g/m2, light grey, one side coated with acrylic resin, Teflon stain-repellent and oil/water-repellent treatment. Tested to UNI EN 20811 (water permeability): water column greater than 1000 mm. p.322
The edition’s technical block runs to 25 notes and every one of them is published on this page exactly once: 7 + 5 + 1 + 1 + 1 + 1 + 9 = 25. No wind rating, warranty term, salt-spray figure or certification scheme is printed in the corpus, so none appears here. No photograph in the edition names a venue, a city or a country, so no location is attributed to any image on this page. How these materials behave through an Australian summer is a separate question, and it is answered on the materials page.
Printed oddities, left as printed5 of them, each with its page
5 things in this edition read as errors. Some are, some are not, and the difference matters enough that they are set out rather than quietly tidied. Correcting a supplier silently is how a catalogue becomes a rumour; the reader gets the oddity and the citation and can judge it.
- PAVILION / PAVILLION
- The collection title on the page is set “pavilion”; the running head above it is set “PAVILLION”, with two Ls. Both spellings are the book’s. We index the title and keep the running head as an alias. p.314
- LINK, three lengths in millimetres
- The extendable-table spread captions the three states “200 mm / 255 mm / 310 mm”. The dimension icons and the rest of the catalogue are in centimetres, so these are evidently centimetres — recorded as printed, not corrected. p.204
- BALI bergère, arm below seat
- The arm callout (40) is lower than the seat callout (45), which reads like an error until you look at the photograph: the solid-teak arm rail passes below the cushion top. Image-verified, and left as printed. p.170
- COVER, “180 g/m²”
- An areal density of the cover fabric, not a product weight. It is carried as the printed spec and the weight field is left empty rather than filled with a number that would mean something else. p.322
- TOWER, an incomplete text layer
- One page in the book where the scan’s text layer is demonstrably short of what is printed — it yields two callouts where the page carries four. The image is the authority and the row was read from it. p.296
The house
Varaschin S.p.A
via Cervano 20 / 31029 Vittorio Veneto (TV) Italia
Printed on the last page of the book, and the only address the corpus states. Art direction by Daniele Lo Scalzo Moscheri, who is also credited as the designer of 4 of the 38 collections in it.
- Colophon / imprint
- Varaschin S.p.A, via Cervano 20 / 31029 Vittorio Veneto (TV) Italia. T 39 0438 56 45, F 39 0438 564 666, varaschin@varaschin.it, varaschin.it. AD Daniele Lo Scalzo Moscheri. STYLING Cora Vohwinkel / Irene Arescaldino / Jennifer Graf. PHOTO Gian Paolo Serna / Riccardo Stocco (assistente). DRONE PHOTO Gian Paolo Serna / Claudio Zavagno. FOTOLITO lucegroup.it. STAMPA sincromia.it cod. 200743. Thanks LinenMe. Stampa Ottobre 2020. Running head throughout: LANDSCAPES '21_'22. p.338
Varaschin designs and makes this range; the corpus names it as the manufacturer and this page goes no further than that. Nothing here is our own manufacture and nothing here is a claim about distribution. The 11photographs on this page are the house’s own editorial imagery, not our showroom — no Varaschin piece is photographed in our fleet, and none is shown as though it were. The photography, the plates and every reproduced page remain © Varaschin.
