The house
Commercial shade, specified to the site.
Centre-post and cantilever umbrellas, tensioned sails and the bases that carry them, each configured by model, shape, size, fabric and frame colour. A torn or faded canopy is replaced on its own, made to the model and size of the frame already standing.
- 39
- pieces
- 4
- collections
- 6
- canopy fabrics
- Ø 10 m
- largest canopy, Grande round
Replacement canopies
A new canopy for the frame you have.
Caravita canopies are made to order by model, size and fabric, so a torn or faded canopy is replaced on its own and the frame stays in use.
A damaged frame is replaced with a new frame or a new umbrella, and quoted with the canopy.
What the quote needs
- Maker, model and year
- Shape and size
- How many of each
- Frame and details
- Photographs
Supplied for fitting on site by your own team or contractor.
The range
Four ways to hold a canopy up.
Centre post

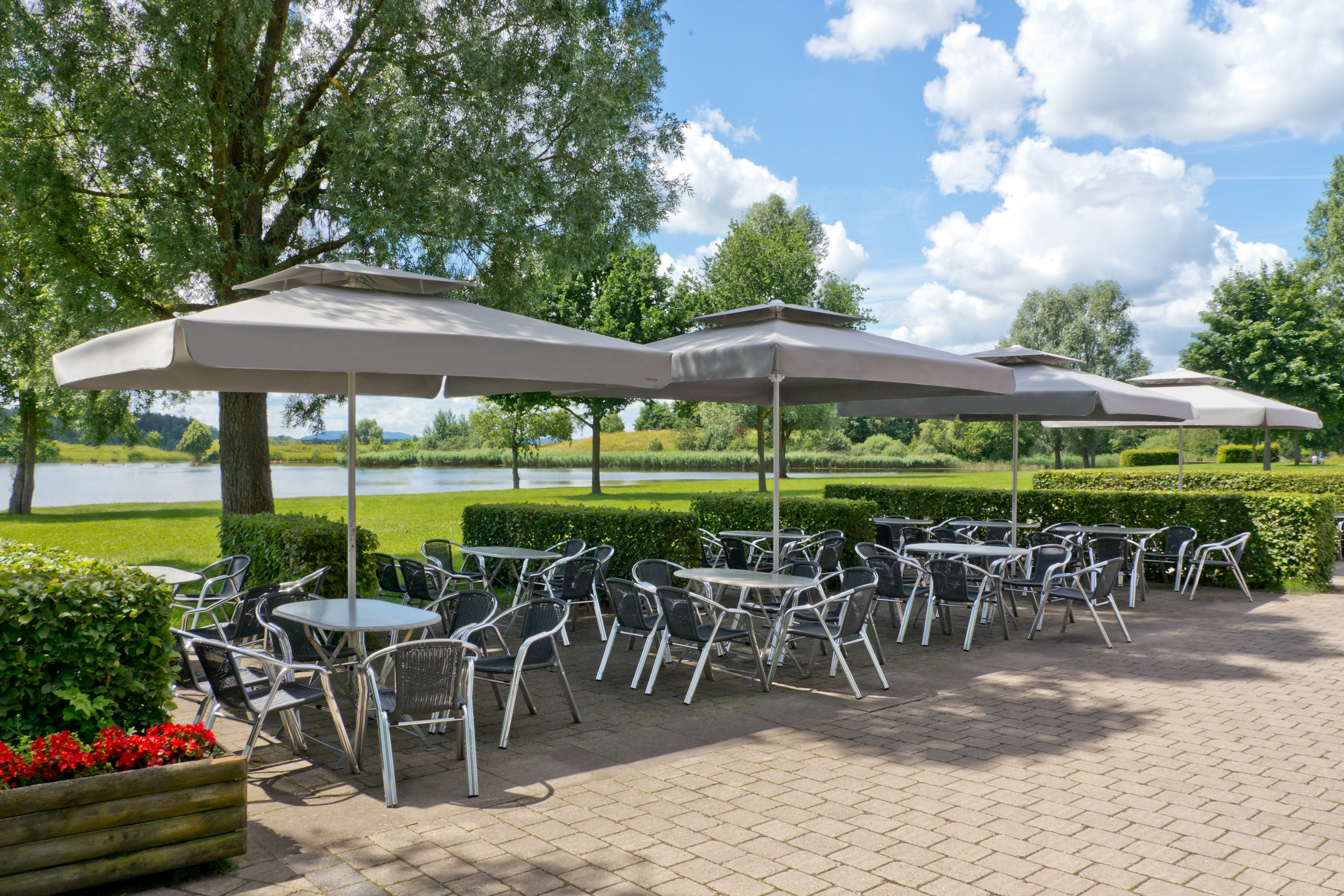

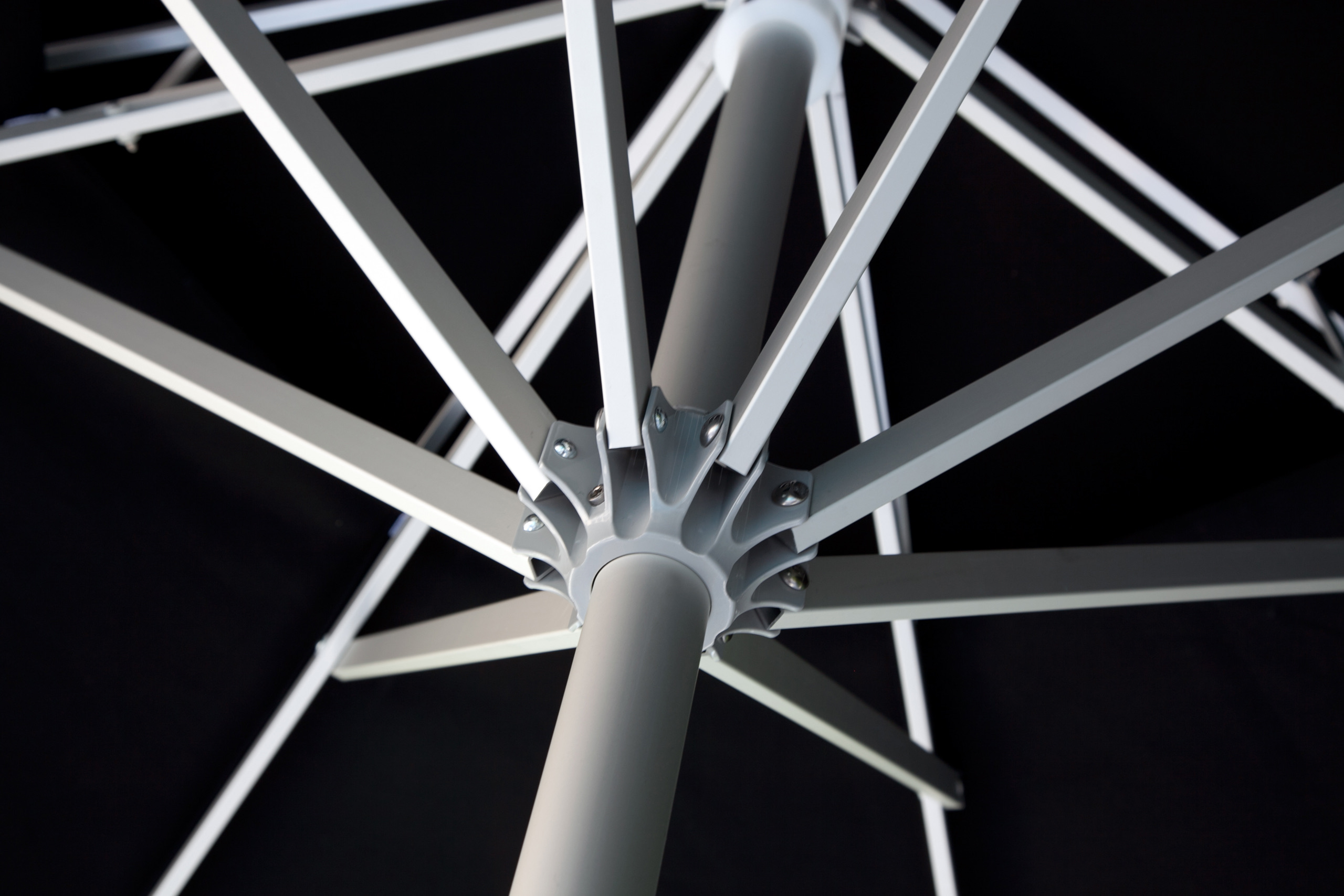

Big Ben, Samara, Supremo, Centro, Grande
One post through the centre of the canopy, opened by crank or a balanced sliding runner and closed telescopically.
Cantilever

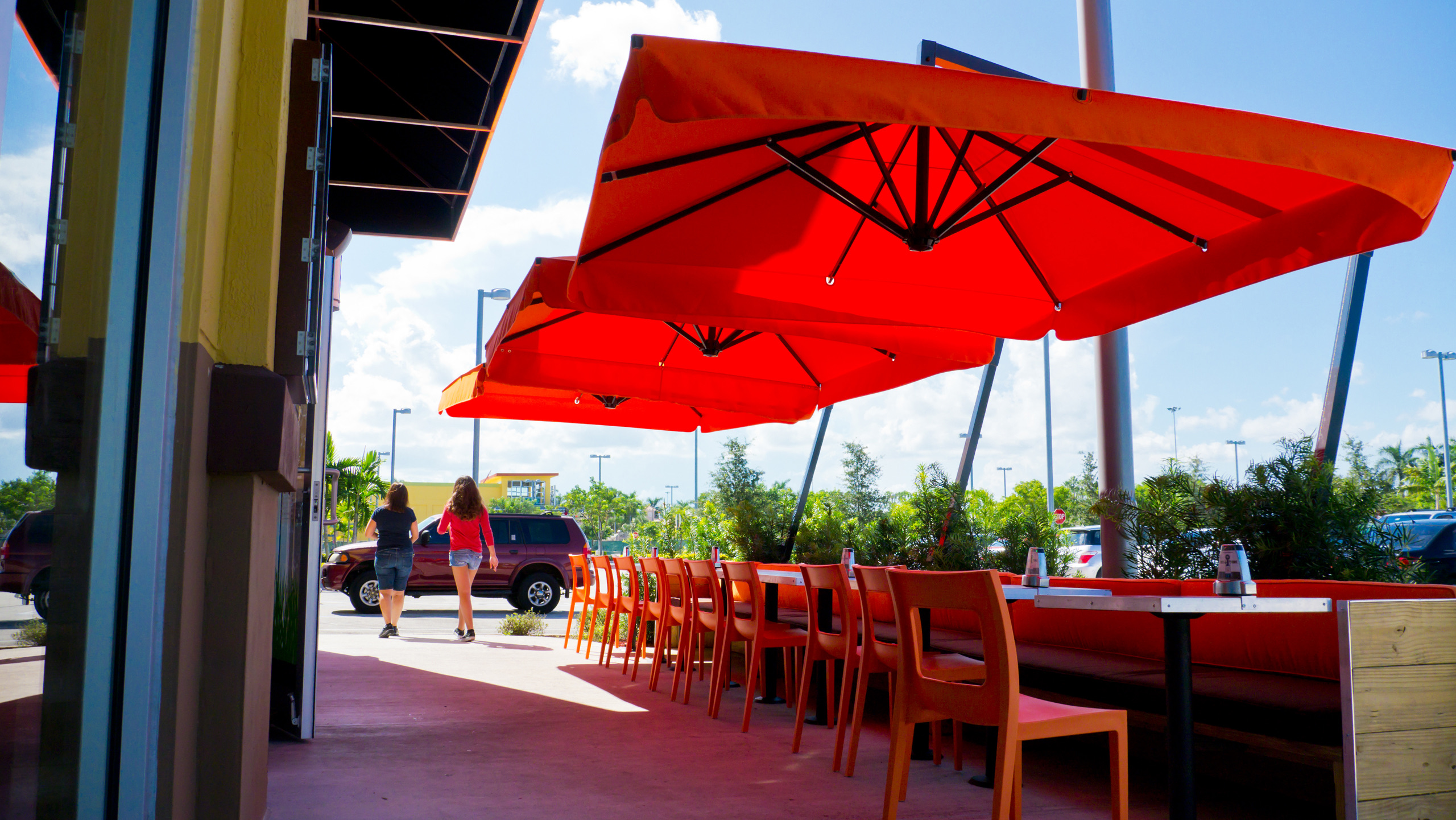

The post stands to one side and the space beneath stays clear. Amalfi carries one, two or four canopies from a single mast.
Tensioned sail
No mast at all: the sail is drawn tight between corner and edge posts, All Season’s on a three-way turnbuckle and 6 mm stainless steel cable.
Mobile base

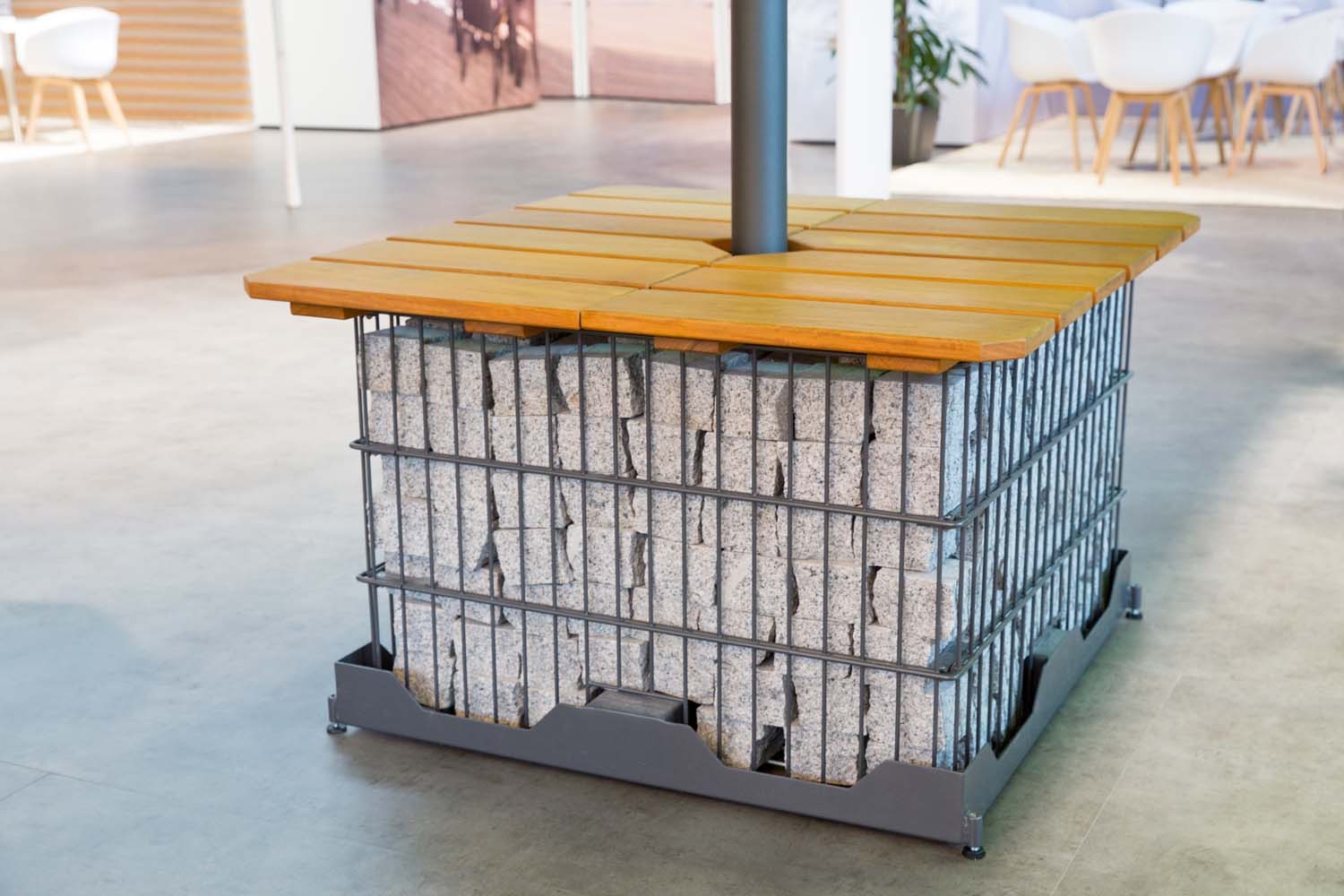

Multicube
A gabion base with a timber top, moved by pallet truck.
Specification
Scale, fabric and ballast.
Wind

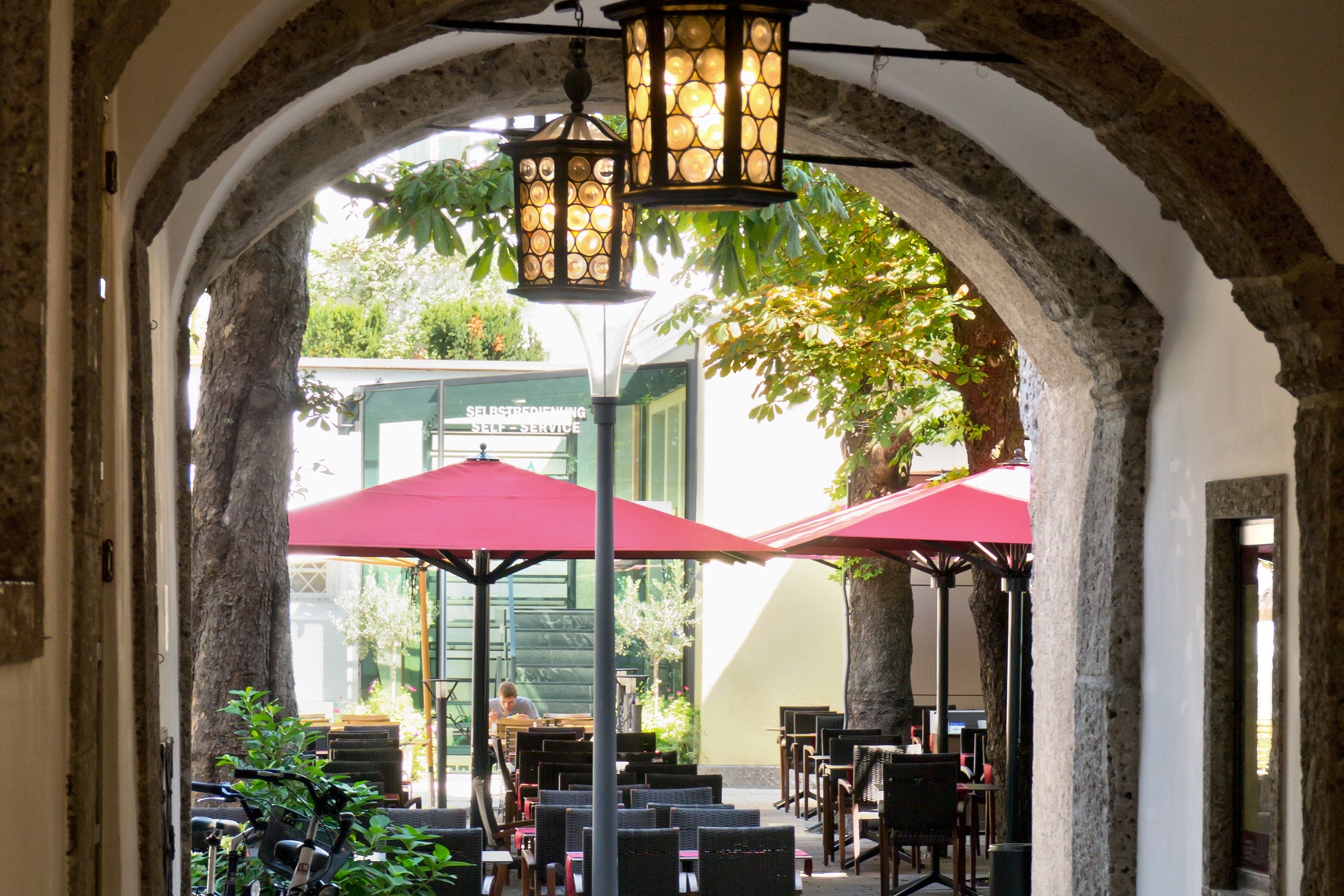

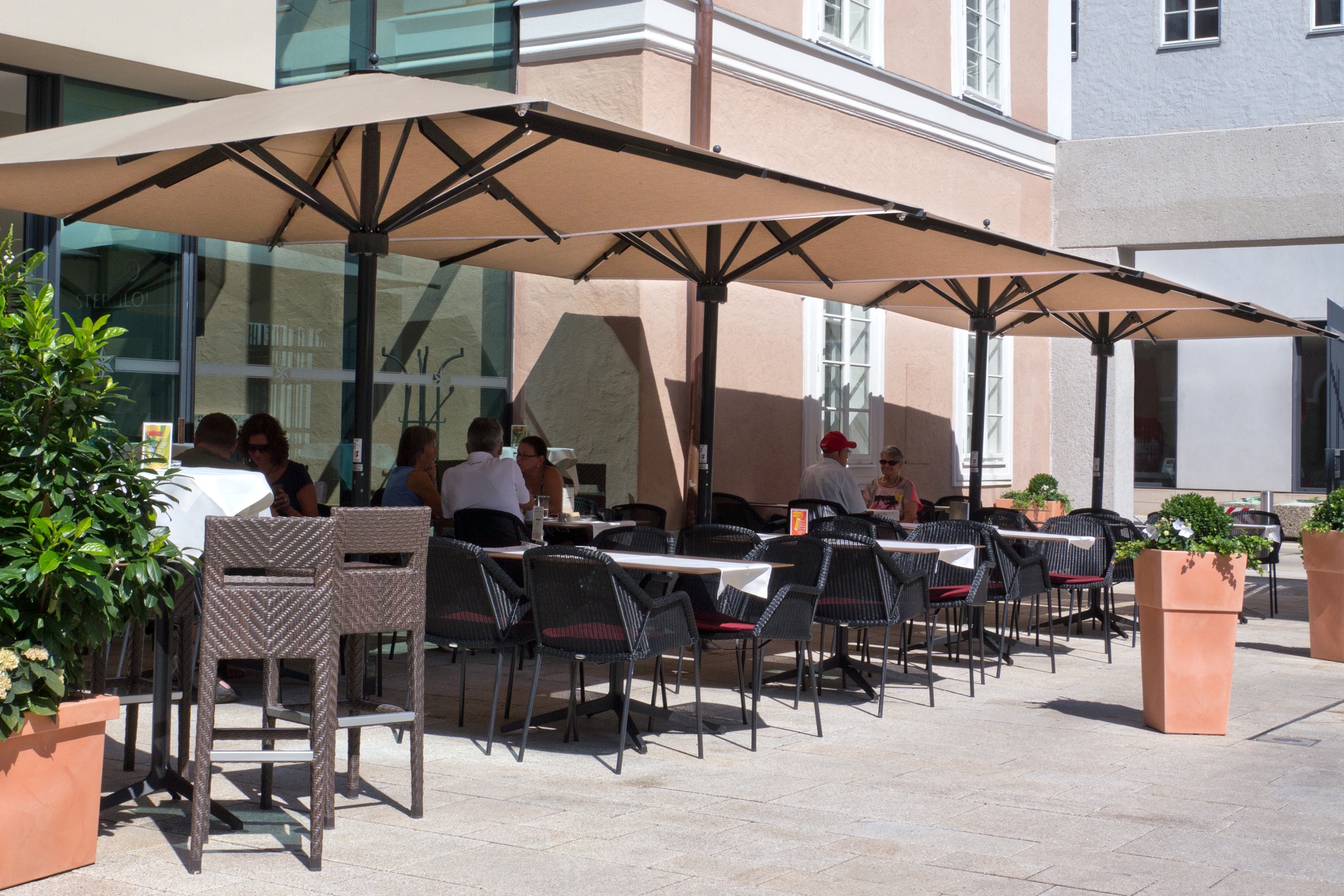

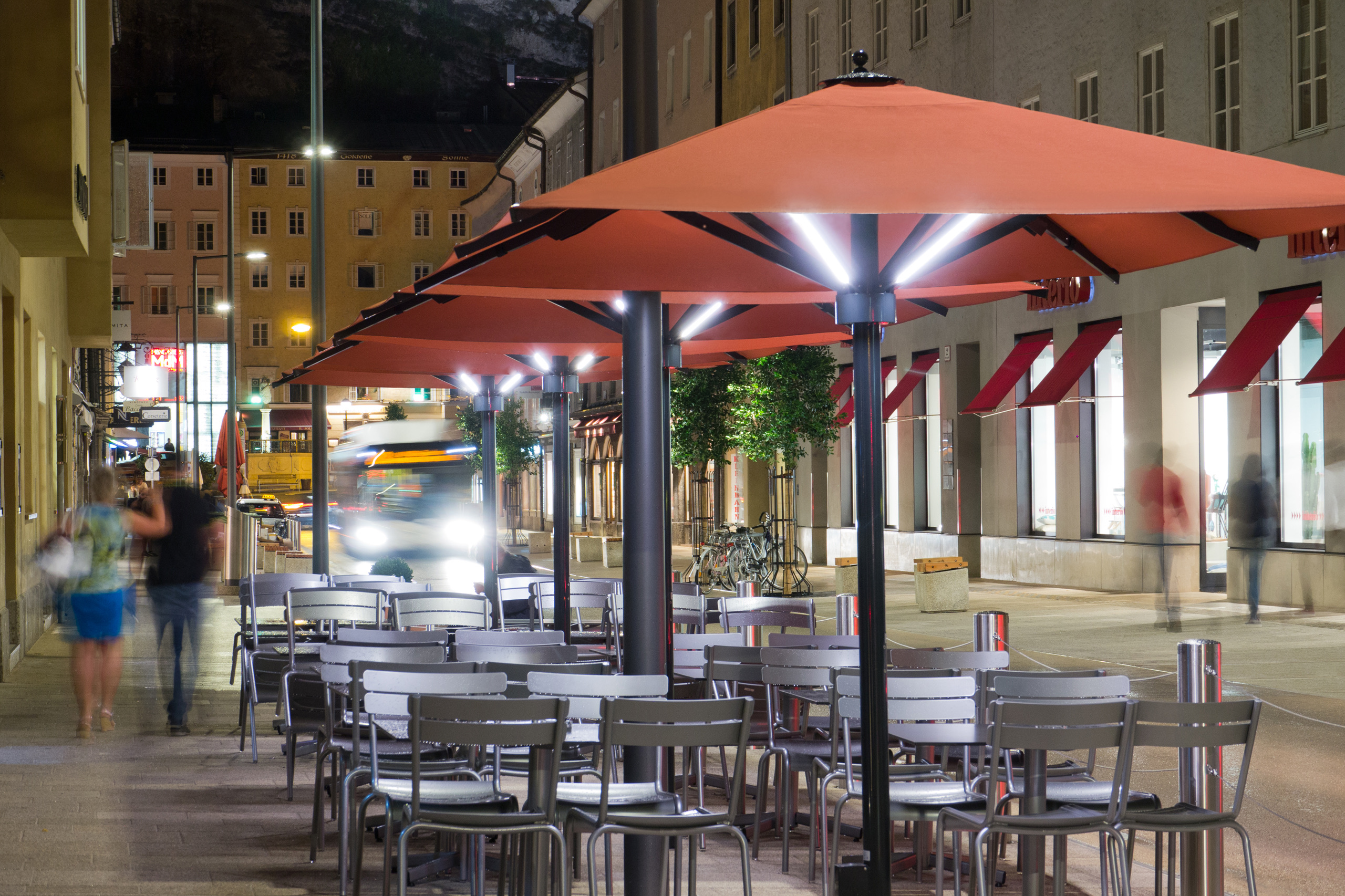

Big Ben was tested in a wind tunnel by structural engineers, and Caravita states that the 3 × 3 m version is “wind-stable up to 100 km/h”.
Scale
Grande opens to 8 × 8 m square, 6 × 8 m rectangular or Ø 10 m round, shading up to 79 m².
Canopy fabric
The fabric programme, with Caravita’s own specification for each.
- Acrylic fabric
- 100% acrylic, water-resistant to a 300–370 mm water column; the standard canopy
- LUMERA acrylic fabric
- Acrylic, to a 460 mm water column
- Tentmesh
- HDPE net
- Ferrari Precontraint 302
- PVC-coated polyester mesh, flame class B1
- ProNature acrylic fabric
- Acrylic
- TempotestStar FR
- 100% polyester, flame class B1
Ballast
Bases run from the 42 kg Oslo plate to the 450 kg steel plate specified for Grande, with ground sleeves for a permanent fixing.
Custom
Built to the site, not just the order.
Big Ben Freestyle takes the site’s own shape, up to 7 m along a side and 36 m² in area, the shorter side at least half the longer. Amalfi’s wall pole is produced to the wall it mounts on, installation and crank heights included.
Reference
The depth, one disclosure away.
The range by collection — 4 collections, 39 pieces
Replacement canopies
Replace the canopy, keep the umbrella.
Send the model, the size and a photograph, and the quote comes back per umbrella set.
Enquire about a replacement canopy
